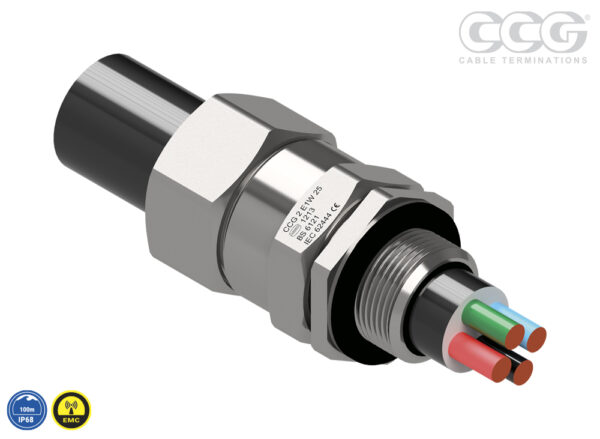

E1W Captive Component Gland®

Product Description

Captive Component Gland® for SWA and Aluminium Armoured Cable


Features and Benefits

  • For indoor and outdoor use.
  • Two-piece handling, no loose parts.
  • Freely rotating captive cone and inspectible cone ring, providing an armour clamp and earth bond without twisting the armour wire.
  • Patented disconnect system for armour clamp inspection.
  • Factory fitted captive elastomeric inner seal for Built-in Safety™.
  • Seals on both the inner and outer sheath of the cable to IP65/66/68.
  • Precision manufactured from high-quality brass (nickel plated) available in aluminium or stainless steel 316/316L on request.
  • Complete with thread sealing gasket and with a heavy-duty locknut.

Optional Accessories / Tools


  • Accessories
  • Tools
  • Adaptor / Reducer

Technical Data

Design Standard


  • BS 6121: Part 1
  • IEC/BS EN 62444
  • EN 50262
  • IEC 60529
  • SANS 62444
  • SANS 1213
  • MARINE
  • London Underground
BS 6121: Part 1
IEC/BS EN 62444
EN 50262
SANS 62444
London Underground
